Specifications:

1,Working medium:Tap water or similar fluids

2,Body material:Brass

3,Reset spring material:Stainless steel

4,Max.Working pressure:100℃

5,Max.Working pressure:0.6Mpa

6,Working Voltage:220VAC

Operating principle

When open the tap of water source,pipeline with water flow,the flow drives induction door to rotate with shaft in the flow direction,magnetic equipment will rotate with shaft when reach to a given position,the induction componets will be activated and switch is ON, pump start to work.

When close the tap of water source,the induction door rotate and drive the shaft and magnetic parts to rotate by the force of reset spring when reach to a given position,induction components shut off and pump stop

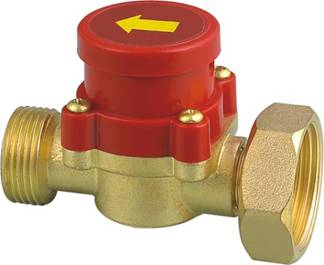

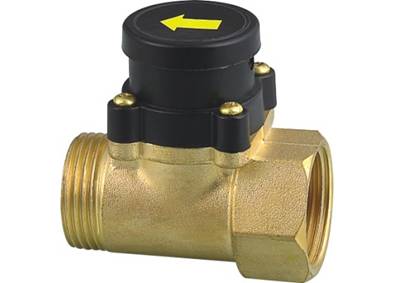

WFS-F1-M1 (F=Female Thread,M=Male Thread)
